Edge-Core DCS511 [AS9737-32DB]
Описание устройства
The Edgecore DCS511 is a high-performance, low latency switch for high-performance data centers. The switch
provides L2 and L3 switching across the 32 x QSFP56-DD ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via
breakout cables 2 x 200 GbE, 4 x 100 GbE, or 4 x 25 GbE. The DCS511 can be deployed as a leaf or spine switch
supporting 100/400 GbE interconnects, as well as 400 GbE ZR or OpenZR+ transceivers for data center
interconnect applications. This open network switch is loaded with the Open Network Install Environment (ONIE),
which supports the installation of compatible Network Operating System (NOS) soſtware, including the open
source options, plus commercial NOS offerings.

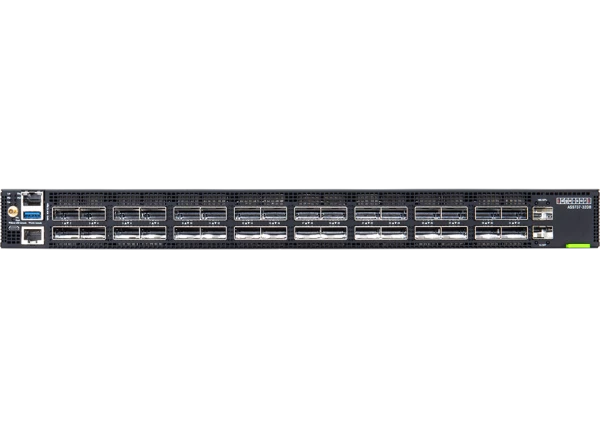

32 x 400G QSFP56-DD switch ports with Tomahawk 4
■ QSFP56-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 2 x 200 GbE or 4 x 100 GbE.
Upper 16 ports support up to 24 W per transceiver.
Lower 16 ports support up to 14 W per transceiver.
■ QSFP56-DD switch ports also support 100 GbE QSFP28 and 40 GbE QSFP+, and via breakout cables 4 x 25 GbE
or 4 x 10 GbE.
■ Supports 400G ZR/Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports.
■ Incorporates Broadcom Tomahawk 4 switch series silicon.
■ BMC module with Serial-over-LAN support
■ SyncE and PTP support with 1PPS connector on the front panel
■ Contains e-fuses to protect individual transceivers
■ Standby power mode
■ Ability to selectively power off individual ports
■ 1 RU form factor.
■ Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

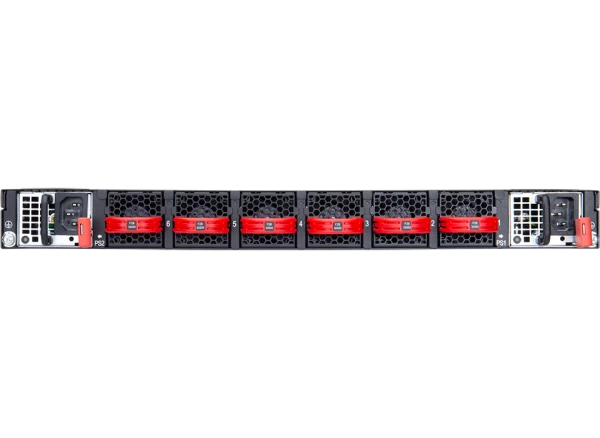

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant 1500 W AC or 48VDC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
