Edge-Core DCS800 [WEDGE100BF-32X]
Описание устройства
The Edgecore DCS800 switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a 1RU
form factor, the switch provides line-rate L2 and L3 switching across the 32 x QSFP28 ports, supporting up to 32 x
25/40/50/100 GbE connections. The DCS800 can be deployed as a TOR switch supporting 25/50 GbE to servers with
40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network
switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible
Network Operating System soſtware, including the open source option and commercial NOS offerings.
32 x 100G QSFP28 switch ports with Tofino 32D
■ Designed with programmable Tofino switch silicon from Intel Networks.
■ Deploys as top-of-rack or spine switch supporting 25 GbE to servers, with 40, 50 or 100 GbE uplinks.
■ Deploys as spine switch supporting 40, 50, or 100 GbE ToR and spine interconnects.
■ 32 x QSFP28 switch ports, each supporting 1 x 100 GbE, 1 x 50 GBE, or 1 x 40 GbE, or via breakout cables,
4 x 25 GbE or 4 x 10 GbE.
■ Layer 2 or Layer 3 switching capacity of 6.4 Tbps (full duplex).
■ Supports hot/cold aisle with port-to-power airflow SKU.

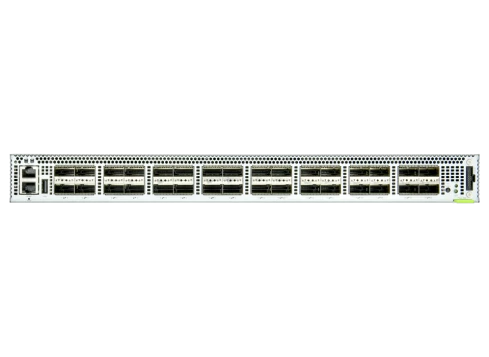

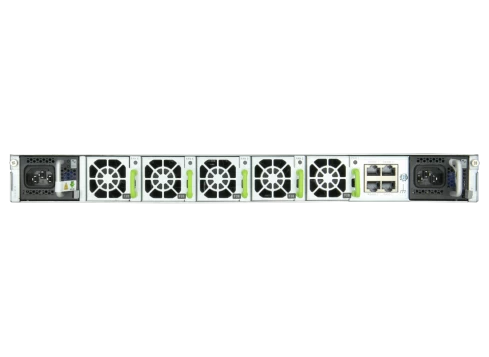

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or 48V DC PSUs.
■ 4+1 redundant, hot-swappable fan modules.
■ Switch pre-loaded with diagnostics and Open Network Install Environment (ONIE) for automated loading of
compatible open source and commercial NOS offerings.
