Edge-Core DCS500 [AS7816-64X]
Описание устройства
The Edgecore DCS500 is a Top-of-Rack (TOR) or spine switch for high-performance data centers. The switch
provides line-rate L2 and L3 switching across the 64 x QSFP28 ports, each supporting 1 x 100 GbE or 1x 40 GbE, or
via breakout cables 4 x 25 GbE or 4 x 10 GbE to a maximum of 128 logical ports. The DCS500 can be deployed as a
TOR switch supporting 10/25 GbE to servers with 40/100 GbE uplinks, or as a spine switch supporting 40/100 GbE
spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which
supports the installation of compatible Network Operating System (NOS) soſtware, including the open source plus
commercial NOS offerings.
64 x 100G QSFP28 switch ports with Tomahawk 2
■ 64 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables 4 x 25 GbE or
4 x 10 GbE to a maximum of 128 logical ports.
■ Incorporates Broadcom StrataXGS Tomahawk II switch series silicon.
■ High performance Intel® Xeon® D-1518 CPU.
■ 2 RU form factor.
■ Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

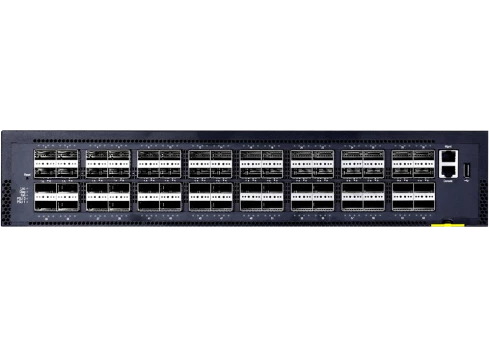

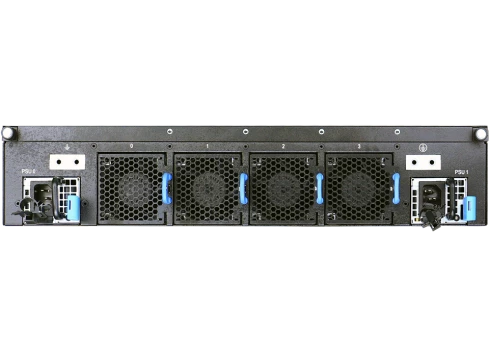

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant 850 W PSUs.
■ 3+1 redundant, hot-swappable fan modules.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
64 x 100G QSFP28 switch ports with Tomahawk 2
■ 64 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables 4 x 25 GbE or
4 x 10 GbE to a maximum of 128 logical ports.
■ Incorporates Broadcom StrataXGS Tomahawk II switch series silicon.
■ High performance Intel® Xeon® D-1518 CPU.
■ 2 RU form factor.
■ Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.
■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant 850 W PSUs.
■ 3+1 redundant, hot-swappable fan modules.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
