Edge-Core DCS204 [AS7726-32X]
Описание устройства
The Edgecore DCS204 switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a
compact 1RU form factor, the switch provides line-rate L2 and L3 switching across the 32 x QSFP28 ports, and
each QSFP28 port can be configured as 2x50G, 4x25G, 1x40GbE or 4x10GbE by using DAC breakout cables. The
DCS204 can be deployed as a TOR switch supporting 10/25/50 GbE to servers with 40/50/100 GbE uplinks, or as a
spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open
Network Install Environment (ONIE), which supports the installation of compatible Network Operating System
soſtware, including the open source options, plus commercial NOS offerings.
32 x 100G QSFP28, 2 x 10G SFP+ switch ports with Trident 3
■ Deploy as top-of-rack switch supporting 10 or 25 GbE to servers, with 40 GbE, 50 GbE, or 100 GbE uplinks.
■ Deploy as spine switch supporting 40 GbE, 50 GbE, or 100 GbE ToR and spine interconnects.
■ 32 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables, 2 x 50 GbE or
4 x 25 GbE or 4 x 10 GbE.
■ Layer 2 or Layer 3 forwarding of 3.2 Tbps.
■ Supports hot/cold aisle with front-to-back and back-to-front airflow SKUs.

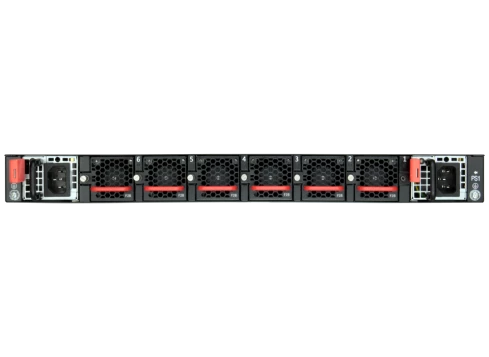

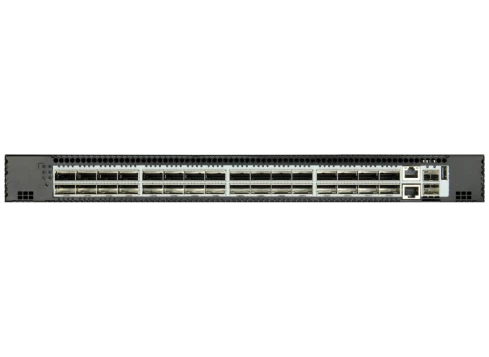

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Energy efficient.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
32 x 100G QSFP28, 2 x 10G SFP+ switch ports with Trident 3
■ Deploy as top-of-rack switch supporting 10 or 25 GbE to servers, with 40 GbE, 50 GbE, or 100 GbE uplinks.
■ Deploy as spine switch supporting 40 GbE, 50 GbE, or 100 GbE ToR and spine interconnects.
■ 32 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables, 2 x 50 GbE or
4 x 25 GbE or 4 x 10 GbE.
■ Layer 2 or Layer 3 forwarding of 3.2 Tbps.
■ Supports hot/cold aisle with front-to-back and back-to-front airflow SKUs.
■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Energy efficient.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
