Edge-Core DCS201 [AS5835-54X]
Описание устройства
The Edgecore DCS202 switch meets the high-performance, availability, and network-scaling requirements of
enterprise and cloud data centers. The DCS202 provides full line-rate switching at Layer 2 or Layer 3 across 48 x
10GbE ports and 6 x 100GbE uplinks. The switch can be deployed either as a top-of-rack switch, or as part of a
40GbE or 100GbE distributed spine, forming a non-blocking folded-Clos data center fabric. The switch is rack
mountable in a standard 19-inch rack.
The DCS202 hardware provides the high availability features required for data center operation, including
redundant, hot-swappable AC or -48 VDC PSUs, 4+1 redundant fan modules, and front-to-back or back-to-front
airflow options. The DCS202 is an ideal top-of-rack switch for virtualized data centers with support for VXLAN and
NVGRE tunneling functions in hardware. This open network switch is loaded with the Open Network Install
Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including
the open source options, plus commercial NOS offerings.
48 x 10G SFP+ and 6 x 100G QSFP28 uplinks switch ports with Trident 3
■ 48 x SFP+ switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX).
■ 6 x 100G QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber
breakout cable).
■ VXLAN and NVGRE tunneling support in hardware for network virtualization.
■ Rack mountable in standard 19" racks.
■ Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

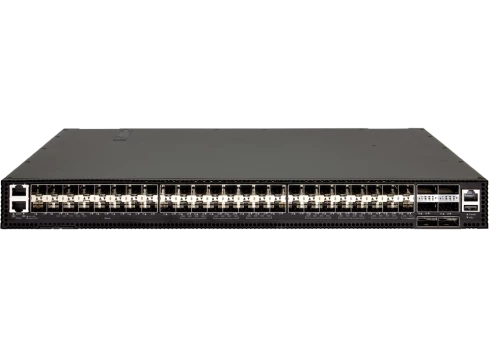

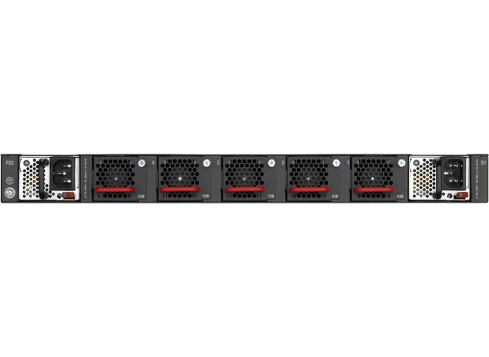

■ All ports on front; PSUs, fan modules on rear.
■ Hot-swappable, load sharing, redundant AC or -48 VDC PSUs.
■ Hot-swappable 4+1 redundant fan modules.
■ Management: Ethernet and console RJ-45 ports; USB storage port.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
