Edge-Core EPS201 [AS4630-54TE]
Описание устройства

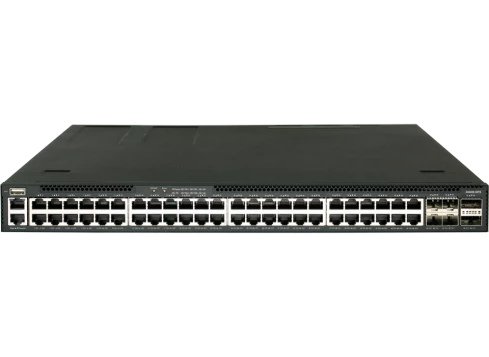

The Edgecore EPS201 is a high-performance Gigabit Ethernet L2/L3 switch featuring 54 ports; 48 x
10/100/1000BASE-T ports, 4x10G/25G SFP28 uplink ports, and 2 x 100G QSFP28 stacking ports (stacking
capability subject to NOS implementations).
The EPS201 is ideal as a management switch in data center networking, enterprise access networking, or campus

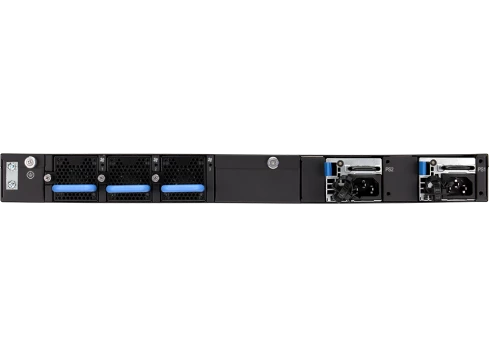

access networking. The switch includes redundant, hot-swappable AC PSUs and 2+1 redundant fan modules with
port-to-power airflow or power-to-port airflow. This open network switch is loaded with the Open Network Install
Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware,
including the open source options, plus commercial NOS offerings.
48 x 1G RJ45, 4 x 25G, 2 x 100G ports with Trident 3
■ Cost-effective open networking switch for management in data center racks, or for enterprise access
networks.
■ 1GbE connections to server node and storage node management ports in rack, with 25GbE uplinks to
management network aggregation switches.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
■ 2 x100G QSFP28 stacking ports (Subject to NOS implementation).
■ Support TPM 1.2 with LPC interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2 or L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
48 x 1G RJ45, 4 x 25G, 2 x 100G ports with Trident 3
■ Cost-effective open networking switch for management in data center racks, or for enterprise access
networks.
■ 1GbE connections to server node and storage node management ports in rack, with 25GbE uplinks to
management network aggregation switches.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
■ 2 x100G QSFP28 stacking ports (Subject to NOS implementation).
■ Support TPM 1.2 with LPC interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2 or L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
