Edge-Core EPS202 [AS4630-54PE]
Описание устройства

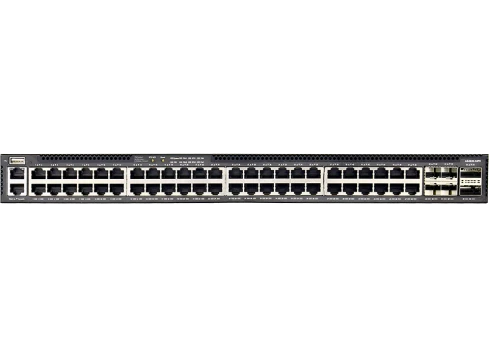

The Edgecore EPS202 is a high-performance Gigabit Ethernet L2/L3 switch featuring 54 ports; the EPS202 has 48
x 10/100/1000BASE-T ports, 4 x 10G/25G SFP28 uplink ports, and 2 x 100G QSFP28 stacking ports (stacking
capability subject to NOS implementations); plus the 48 x 10/100/1000BASE-T ports fully support IEEE 802.3at
and IEEE 802.3bt Power-over-Ethernet (PoE).
The EPS202 is ideal as an access PoE switch for enterprise access networking or campus access networking. The

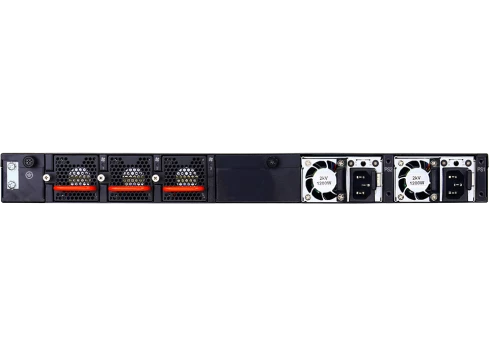

switch includes redundant hot-swappable AC PSUs and 2+1 redundant fan trays with front-to-back airflow, and
has the ability to provide up to 90 Watts (depending on the PoE power budget) of power per port to attached
devices, such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing existing Cat. 6 cable
infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which
supports the installation of compatible Network Operating System (NOS) soſtware, including the open source
options, plus commercial NOS offerings.
48 x 1G RJ45 PoE, 4 x 25G, 2 x 100G ports with Trident 3
■ Mid-range open networking switch with IEEE 802.3af/at/bt Type 3/4 PoE capability.
■ PoE capability able to power up enterprise, hospital, warehouse, and retail environments, interconnecting
security with Wi-Fi access points, IP Phones, and IP cameras.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
■ 2 x 100G QSFP28 stacking ports (subject to NOS implementation), also can be used as data transmission ports.
■ Supports TPM 1.2 with LPC interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2/L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Hot-swappable 2 + 1 redundant fan trays.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source options and commerical NOS offerings.
