Edge-Core EPS203 [AS4630-54NPE]
Описание устройства

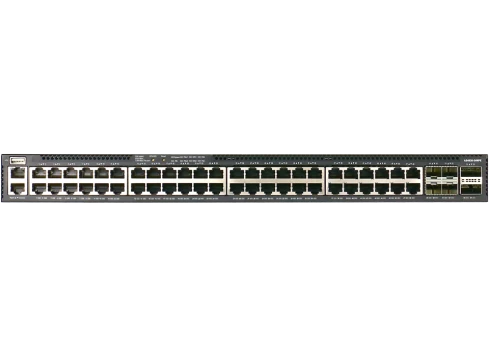

The Edgecore EPS203 is a high-performance multi-Gigabit Ethernet L2/L3 switch featuring 54 ports. The EPS203
has 36 x 100M/1000M/2.5G ports, 12 x 1G/2.5G/5G/10GBASE-T ports, 4 x 25G uplink ports, and 2 x 100G QSFP28
stacking ports (stacking capability subject to NOS implementation); plus all RJ-45 Ethernet ports can support up
to 90 W Power-over-Ethernet (PoE).
The EPS203 is ideal for campus networking, with its redundant hot-swappable AC PSUs and front-to-back airflow.
The switch has the ability to provide up to 90 Watts (depending on the PoE power budget) of power per port for all
48 RJ-45 ports, including the 10G ports, powering attached devices such as VoIP phones, wireless access points,
and surveillance cameras etc, which fully utilizes the existing Cat. 6 cable infrastructure.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the
installation of compatible network operating system (NOS) soſtware, including open source NOS options and
commercial NOS offerings.
36 x 2.5G, 12 x 2.5/5/10G, 4 x 25G, 2 x 100G with Trident 3
■ Flagship high-end, powerful, open network access multi-G PoE switch that is ideal for high-density,
high-power, future-proof, enterprise multi-G PoE deployments.
■ 36 x 1G/2.5G and 12 x 1G/2.5G/5G/10GBASE-T connections to VoIP phones, Wi-Fi APs, IP cameras, with 25 GbE
uplinks to the campus aggregation network.
■ PoE PSE capability with 36 x 1G/2.5G IEEE 802.3 af/at and bt Type 3/Type 4 90W and 12 x 1G/2.5G/5G/10G IEEE
802.3 at/af and bt Type 3/Type 4 90W connections to VoIP phones, Wi-Fi APs, and IP cameras with 25 GbE
uplinks to campus aggregation network.
■ A PoE switch that is ideal for enterprise, hospitality, warehouse, and retail applications, interconnecting
security, cameras, Wi-Fi APs, and IP camera devices that are ideal for future immersive AR/VR/360 VR video
applications.
■ 36 x 100M/1000M/2.5G ports, 12 x 1G/2.5G/5G/10GBASE-T ports.
■ 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
■ 2 x 100G QSFP28 stacking ports (subject to NOS implementation), also can be used as data transmission ports.
■ Supports TPM 1.2 with LPC interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2/L3 forwarding and switching.

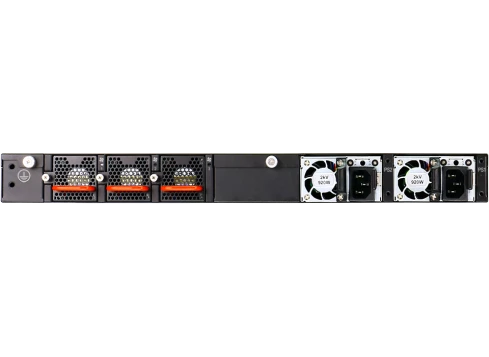

■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Hot-swappable 2 + 1 redundant fan trays.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source NOS and commerical NOS offerings.
