Edge-Core EPS121 [AS4625-54T]
Описание устройства

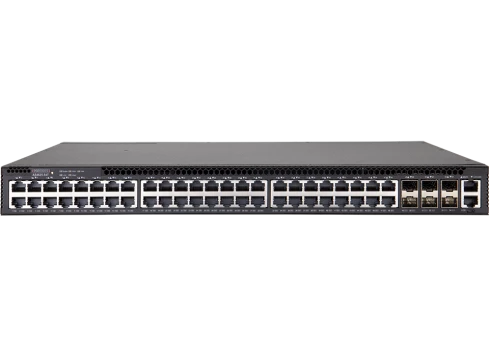

The Edgecore EPS121 is an easy-to-use Gigabit Ethernet L2 switch featuring 54 ports; 48 x 10/100/1000BASE-T
ports and 6 x 1G/10G SFP+ uplink ports.
The EPS121 is ideal as a management switch in data center networking, enterprise access networking, and campus

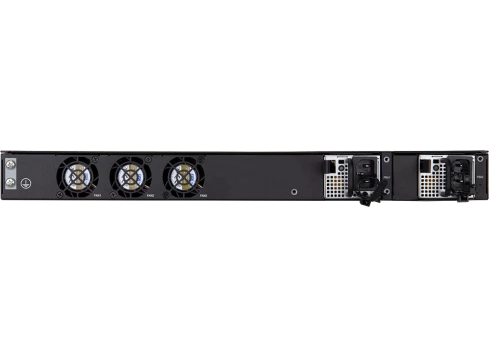

access networking. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with
front-to-back airflow or back-to-front airflow. This open network switch is loaded with the Open Network Install
Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware,
including the open source options, plus commercial NOS offerings.
48 x 1G RJ45, 6 x 1G / 10G switch ports with Trident 3
■ Easy to use entry-level open networking switch for management in data center racks, and for enterprise or
campus access networks.
■ 1GbE connections to server node and storage node management ports in rack, with uplinks to management
network aggregation switches.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 6 x SFP+ uplink ports supporting 1GE/10GE.
■ Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor.
■ Support TPM 2.0 with SPI Interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2/L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Fixed 2+1 redundant fans.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commercial NOS offerings.
48 x 1G RJ45, 6 x 1G / 10G switch ports with Trident 3
■ Easy to use entry-level open networking switch for management in data center racks, and for enterprise or
campus access networks.
■ 1GbE connections to server node and storage node management ports in rack, with uplinks to management
network aggregation switches.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 6 x SFP+ uplink ports supporting 1GE/10GE.
■ Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor.
■ Support TPM 2.0 with SPI Interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2/L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Fixed 2+1 redundant fans.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commercial NOS offerings.
