Edge-Core EPS122 [AS4625-54P]
Описание устройства

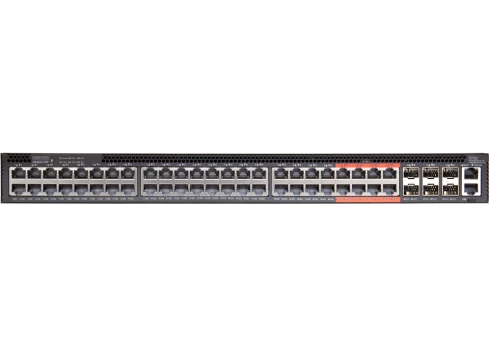

The Edgecore EPS121 is an easy-to-use Gigabit Ethernet L2 switch featuring 54 ports; 48 x 10/100/1000BASE-T
ports and 6 x 1G/10G SFP+ uplink ports.
The EPS121 is ideal as a management switch in data center networking, enterprise access networking, and campus

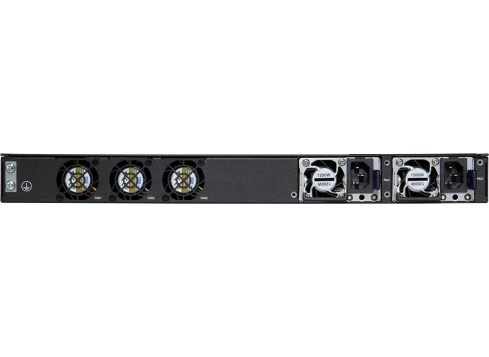

access networking. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with
front-to-back airflow or back-to-front airflow. This open network switch is loaded with the Open Network Install
Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware,
including the open source options, plus commercial NOS offerings.
48 x 1G RJ45, 6 x 1G / 10G switch ports with Trident 3
■ Easy-to-use entry level open networking switch with PoE capability, ideal for enterprise and campus access
networking.
■ Fully utilizing the existing Cat. 5/5e/6 cable infrastructure (90 W requires Cat6A Cabling).
■ Full line-rate L2/L3 forwarding and switching.
■ PoE capability able to power up enterprise, hospital, warehouse, and retail environments by connecting to
security devices, Wi-Fi access points, IP phones, and IP cameras.
■ 48 x 10/100/1000BASE-T RJ-45 ports.
■ 6 x SFP+ uplink ports supporting 1GE/10GE.
■ Ports 1 to 40 up to 30 W per-port.
■ Ports 41 to 48 up to 90 W per-port.
■ Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor.
■ Support TPM 2.0 with SPI Interface.
■ Options to enable UEFI Secure Boot.
■ Full line-rate L2/L3 forwarding and switching.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ Fixed 2+1 redundant fans.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source options and commercial NOS offerings
